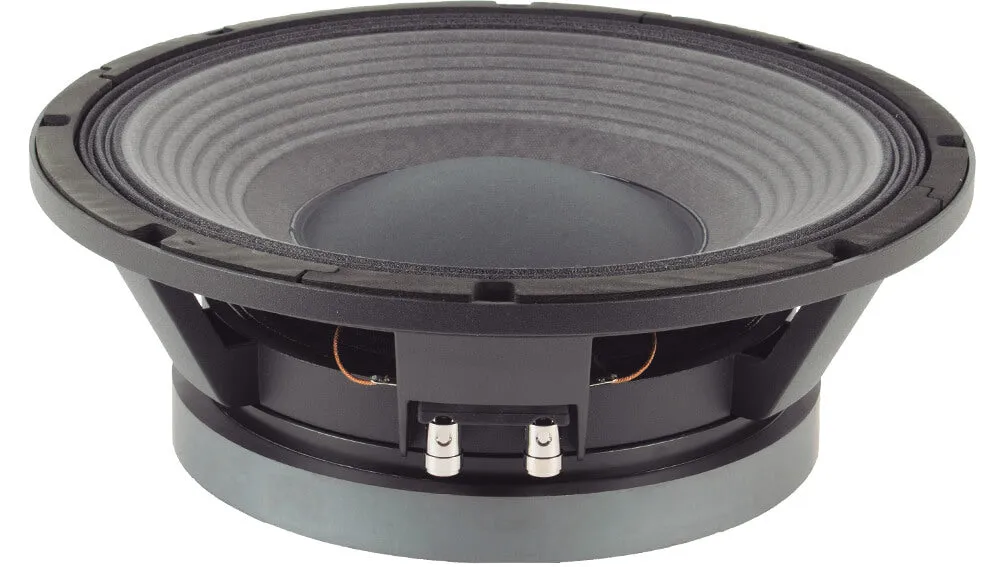

Product Details
＋
High power handling: 700 WAES
● High sensitivity: 96 dB
● FEA optimized magnetic circuit
● Designed with MMSS technology for high control, linearity and low harmonic distortion
● CONEX spider for higher resistance and consistency
● Waterproof treatment for both sides of the cone
● 4” DUO double layer inner/outer voice coil
● Extended controlled displacemente: XMAX ± 9 mm
● Massive mechanical displacement capability: Xdamage ± 47 mm
Specifications |
|
| Nominal diameter | 300 mm 12 in |
| Nominal impedance | 8 Ohm |
| Minimum impedance | 7.1 ohm |
| Power capacity | 700 W AES |
| Program power | 1400 W |
| Sensitivity | 96 dB 1 W @ 1 m @ 2Π |

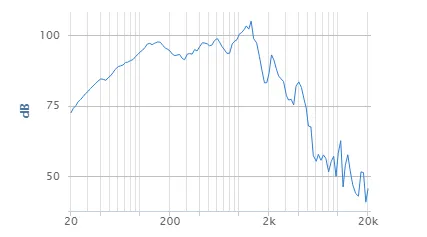

| Frequency range | 35-2000 Hz |
| Recommended enclosure volume | 12 / 60 l 0.7 / 2.24 ft³ |
| Voice coil diameter | 100 mm 4 in |
| BL factor | 20 N / A |
| Moving mass | 0.102 kg |
| Winding length | 20 mm |
| Air gap height | 10 mm |
| Xdamage pp | 58 mm |
Thiele Small Parameters |
|
| Fs | 49 Hz |
| Re | 5.1 ohm |
| Qms | 15.3 |
| Qes | 0.4 |
| Qts | 0.38 |
| Vas | 43 l |
| Cms | 99 µm / N |
| Rms | 2.1 kg / s |
| Sd | 0.055 m² |
| Xmax | 9 mm |
| Vd | 500 cm³ |
| Le @1 kHz | 2.1 mH |
Construction |
|
| Net weight | 9.7kg 21.39 lb |
| Total weight | 10.4 kg 22.92 lb |
| Magnet | Ferrite |
