Highlights
- Multi-Color LED Lighting
- 1000 Watts Maximum Power Handling
- 300 Watts Continuous Power
- 12” (305 mm) IMPP Woofer Cone
- Dual 2 Ohm Voice Coil
- High Impact ASA Plastic Basket

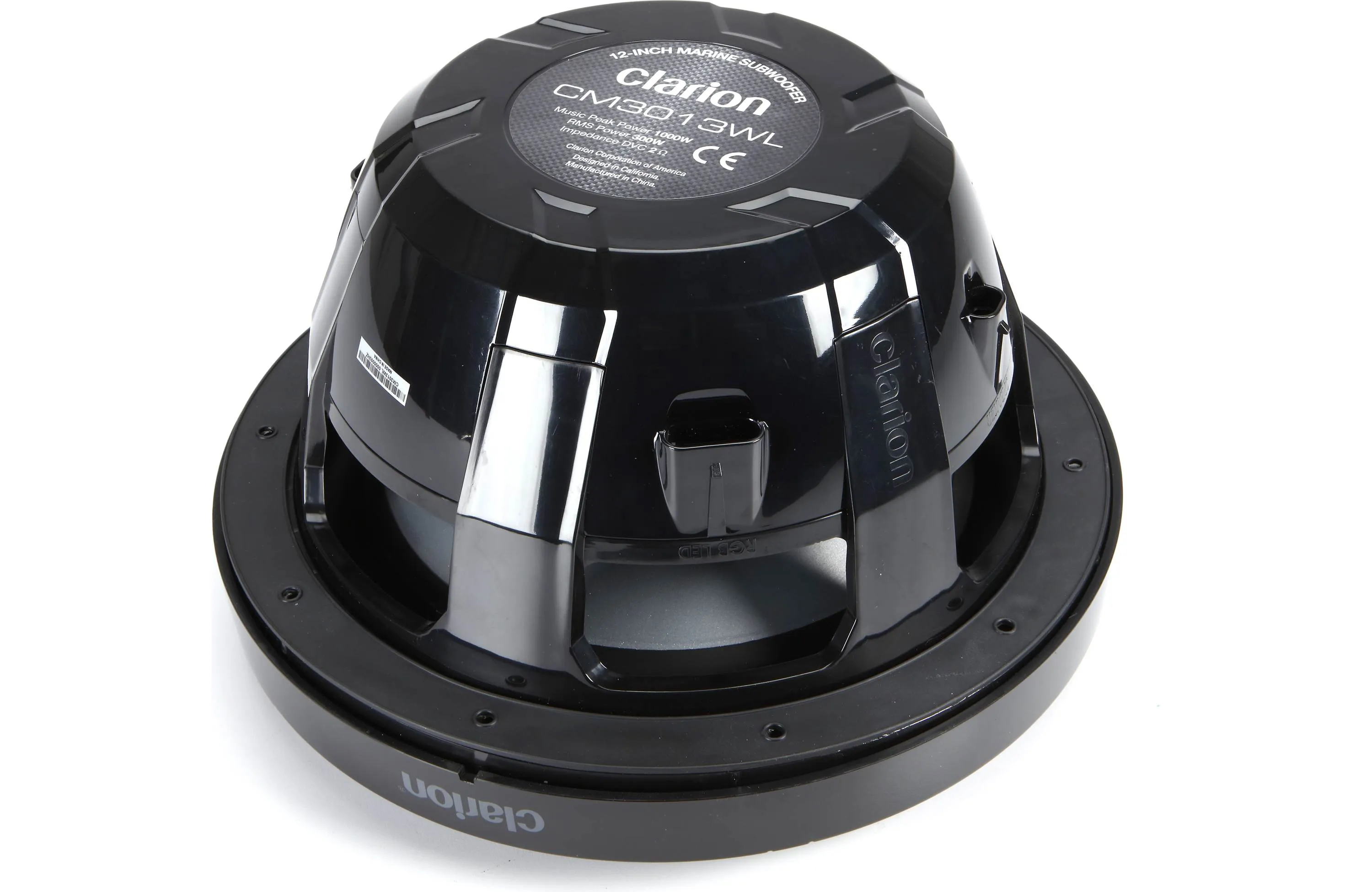

- Male Waterproof Connector Built on Basket (Speaker & RGB Connector)
- Meets or Exceeds ASTM D4329 (UV Exposure)
- Meets or Exceeds ASTM B117 (Salt Fog Exposure)
- IP55 Water Ingress Protection

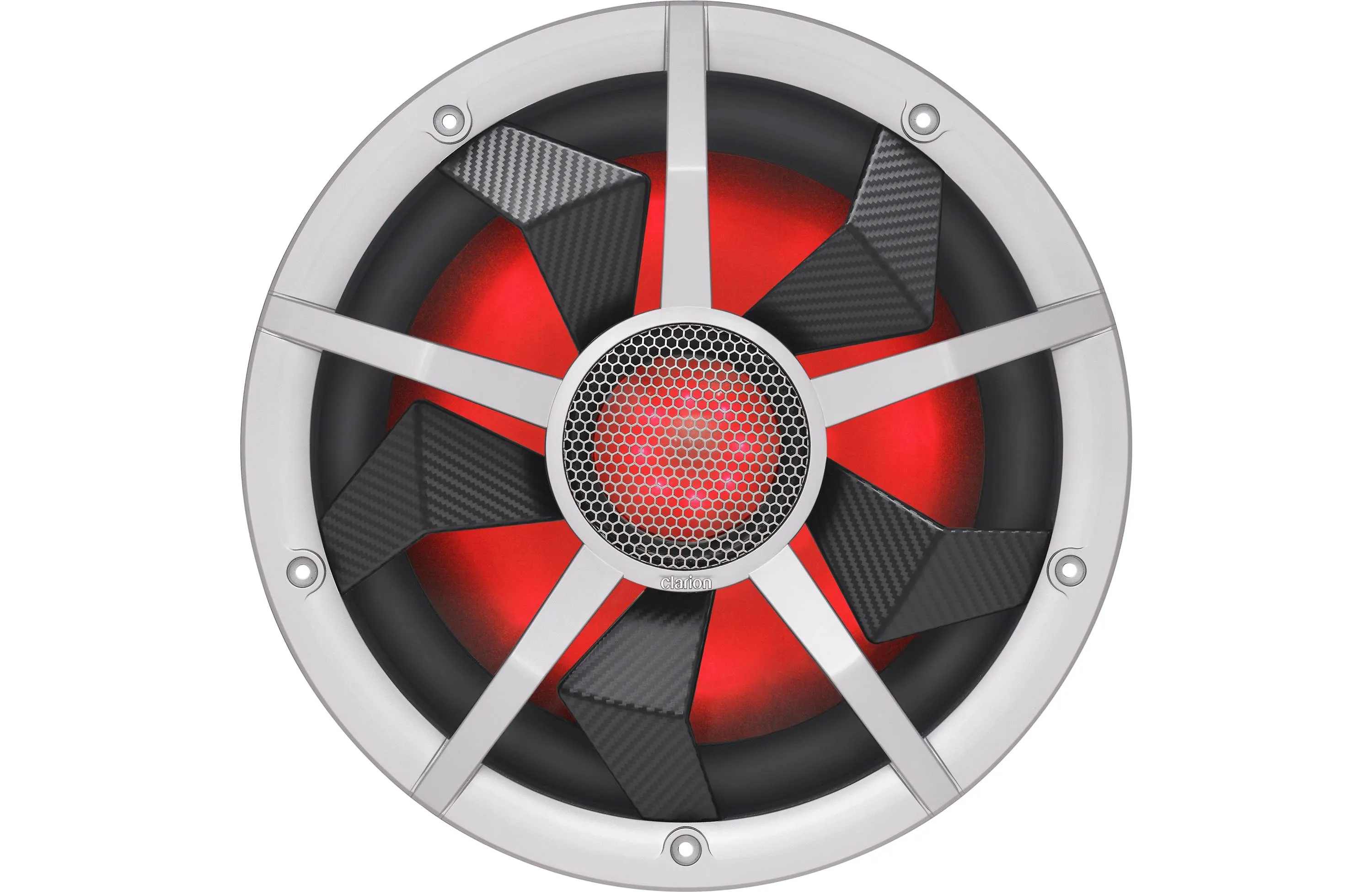

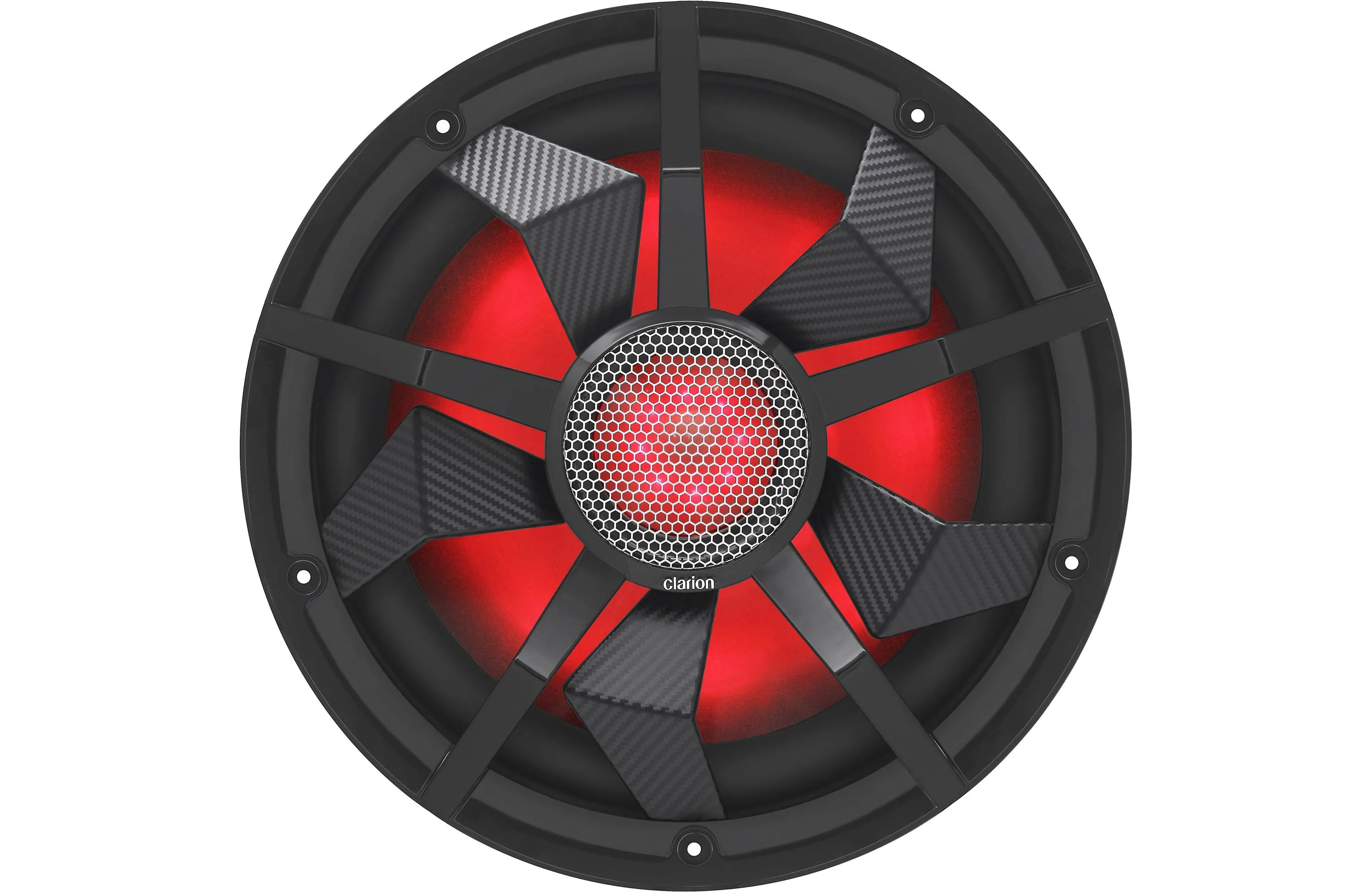

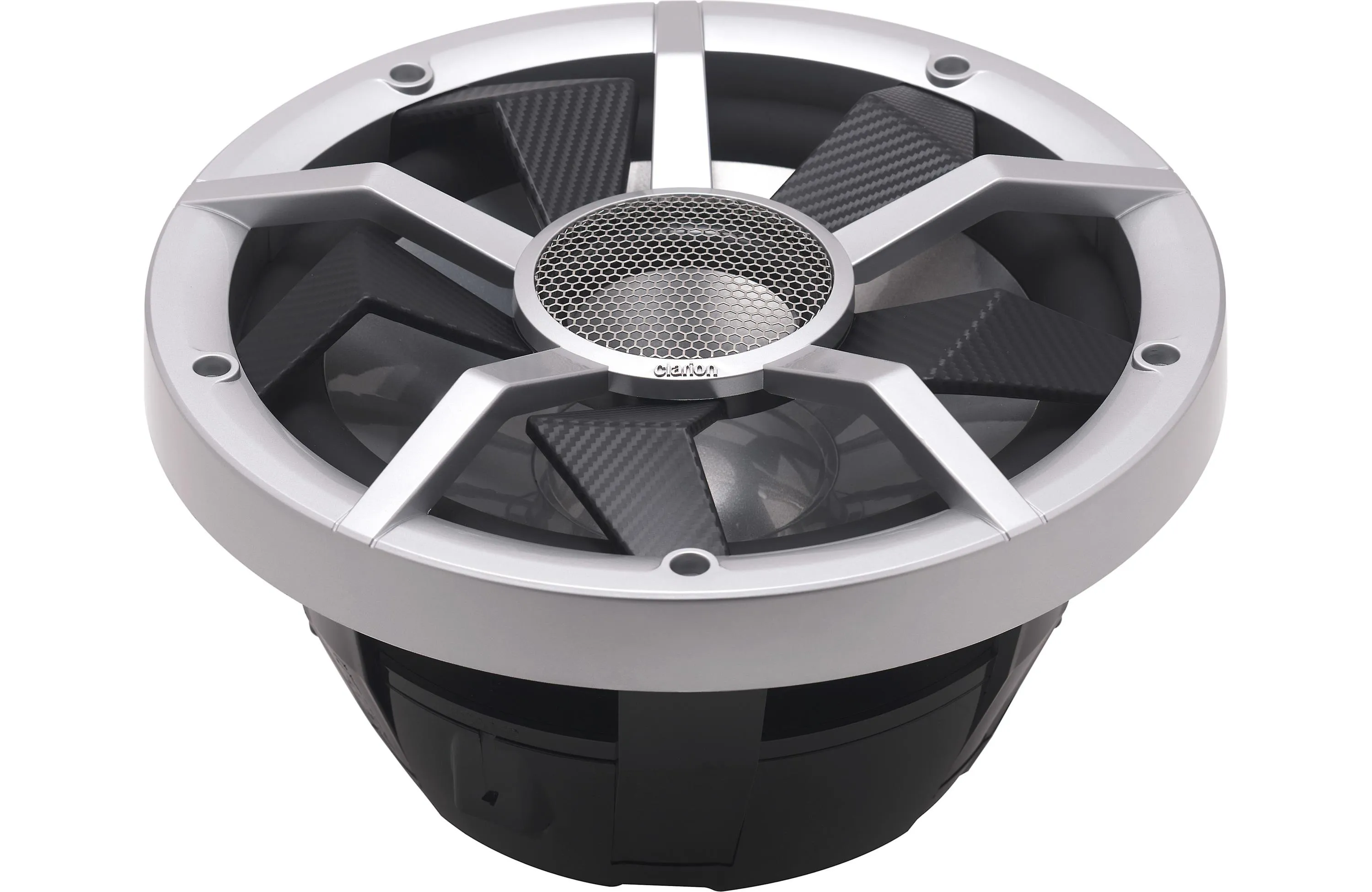

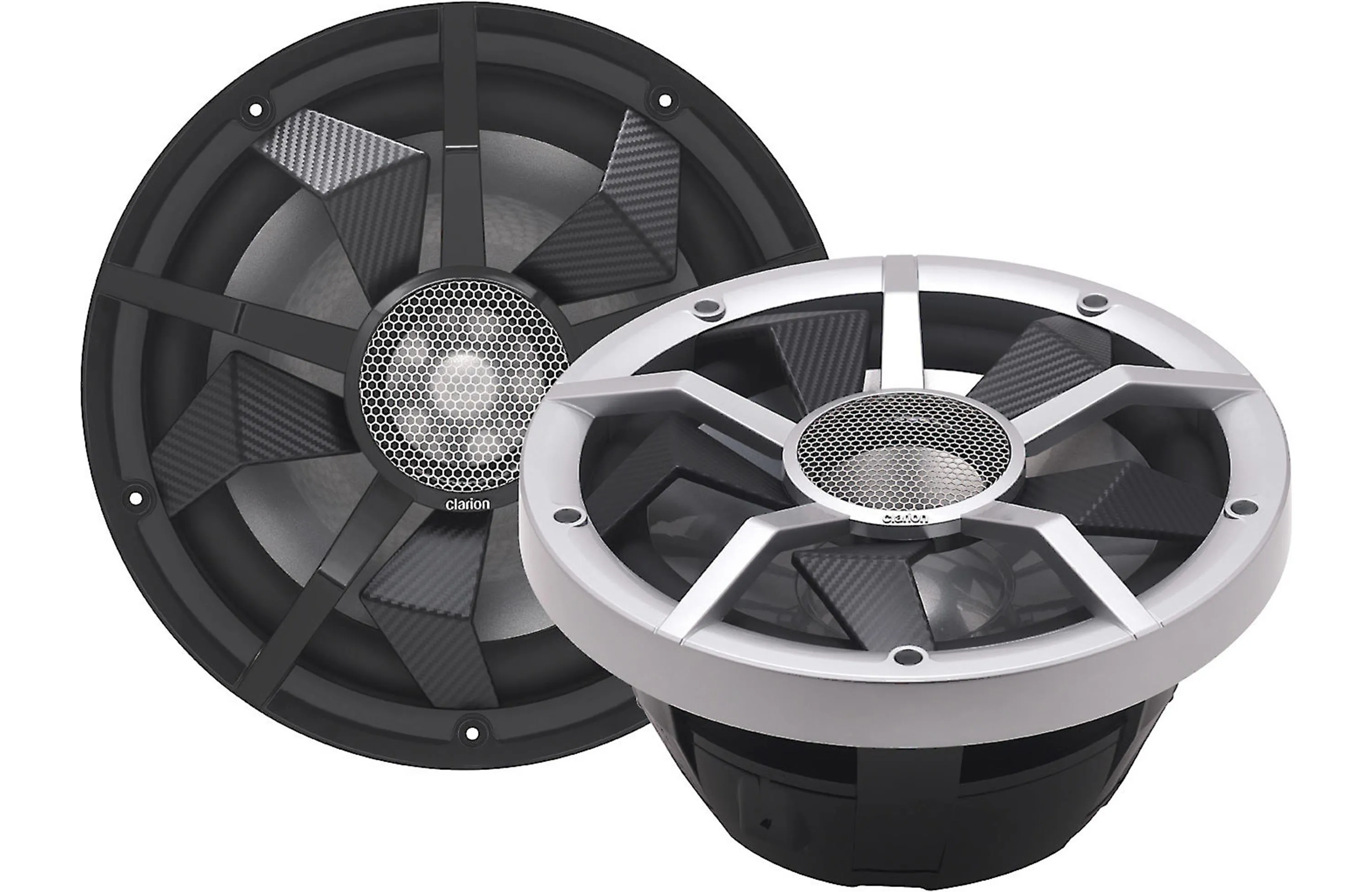

- Includes Silver & Black Grilles
- Includes Female Waterproof Connector for Speaker & RGB Lighting
- 10.71” (272 mm) Mounting Hole Diameter
- 5.45” (139 mm) Mounting Depth
Heavy Duty Design and Waterproofing
The CM series of speakers were designed to withstand harsh marine environments, all the way down to the connectors included with the speakers. The CM series 12" subwoofers feature built-in waterproof connection ports for both audio and LED lightning, as well as waterproof connectors to be used during installation. In addition to the rugged design, all Clarion CM-series speakers are designed to withstand the testing standards of ASTM D4329 and B117 for UV and Salt Fog exposure.
Fresh New Look

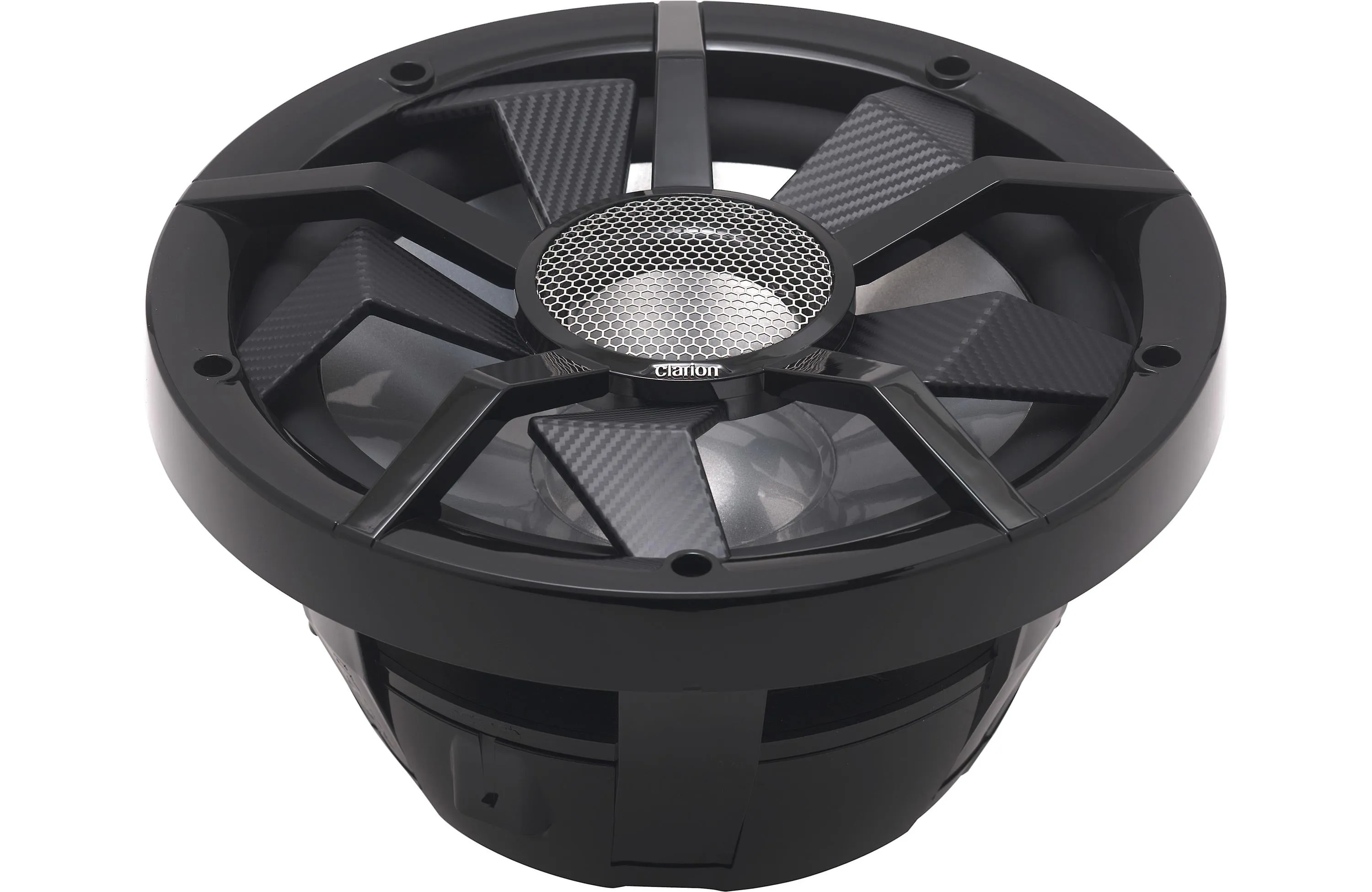

Designed in Southern California, Clarion's CM-series speakers were inspired by a Virginia-class submarine propeller! Featuring a distinctly unique propeller blade clad in carbon-fiber style material, the speakers feature a strikingly fresh and attractive look. In addition, they are available in black or silver, making them fit fashionably to the interior, or exterior, of many boats, old or new.

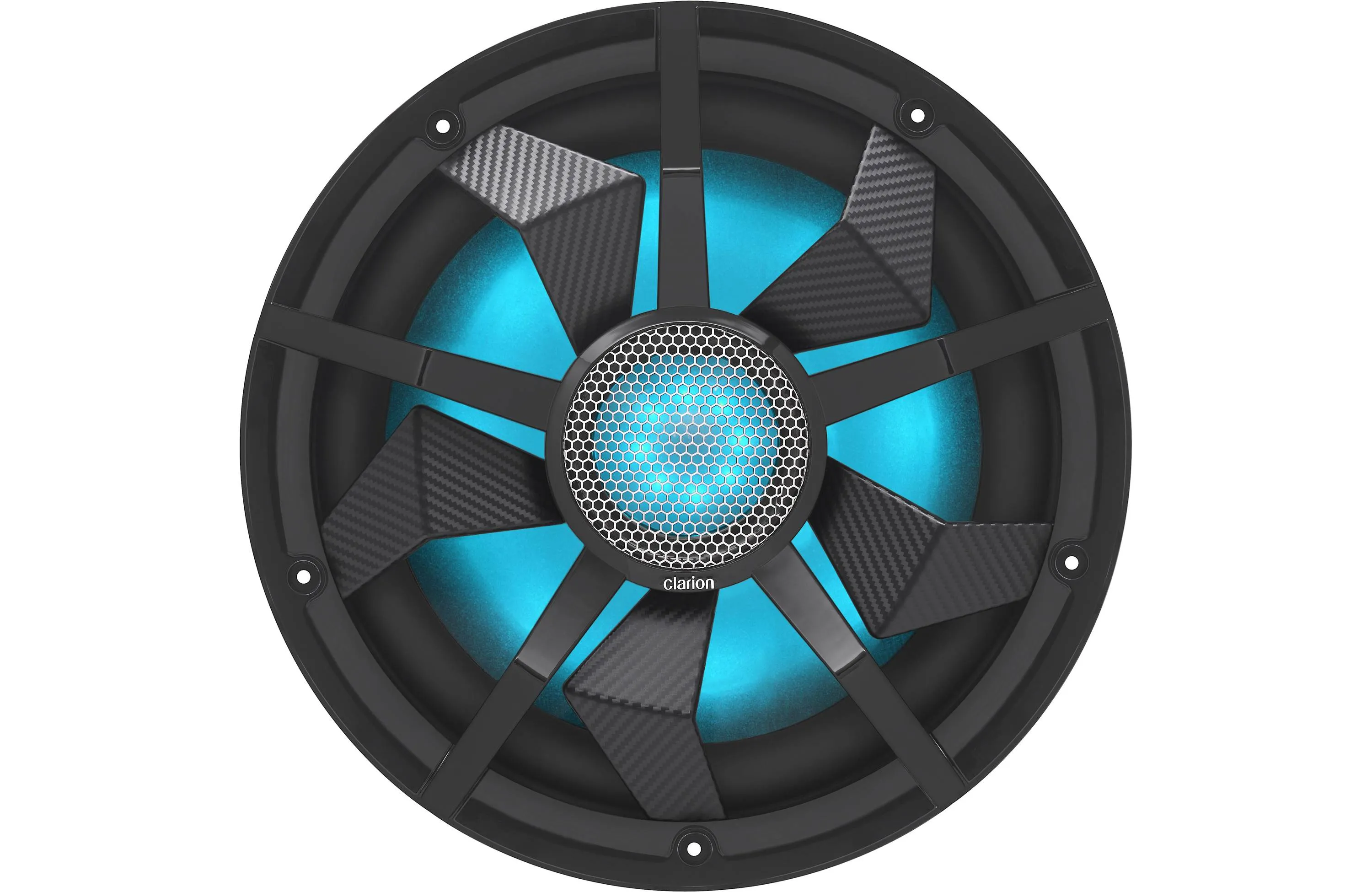

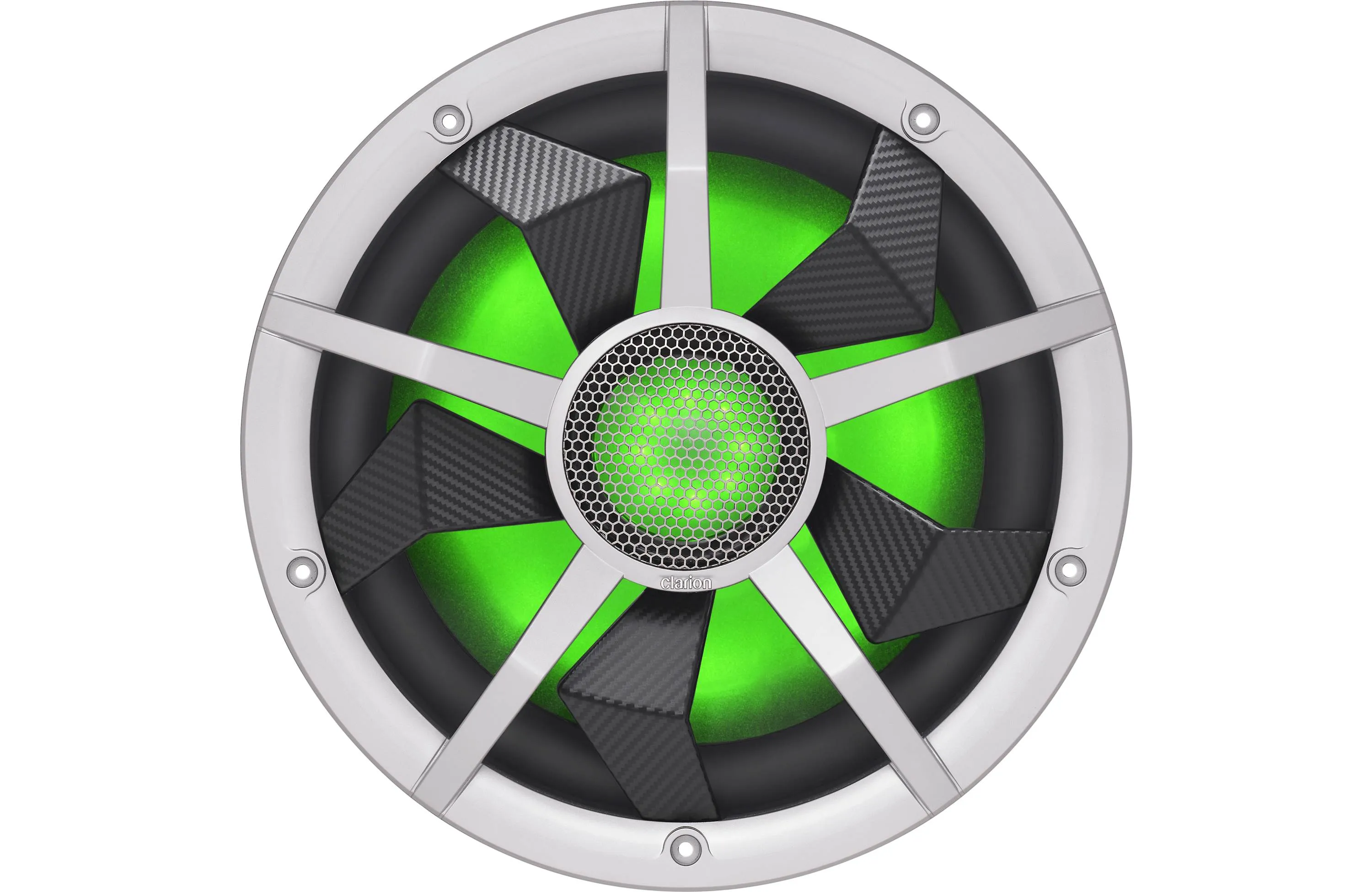

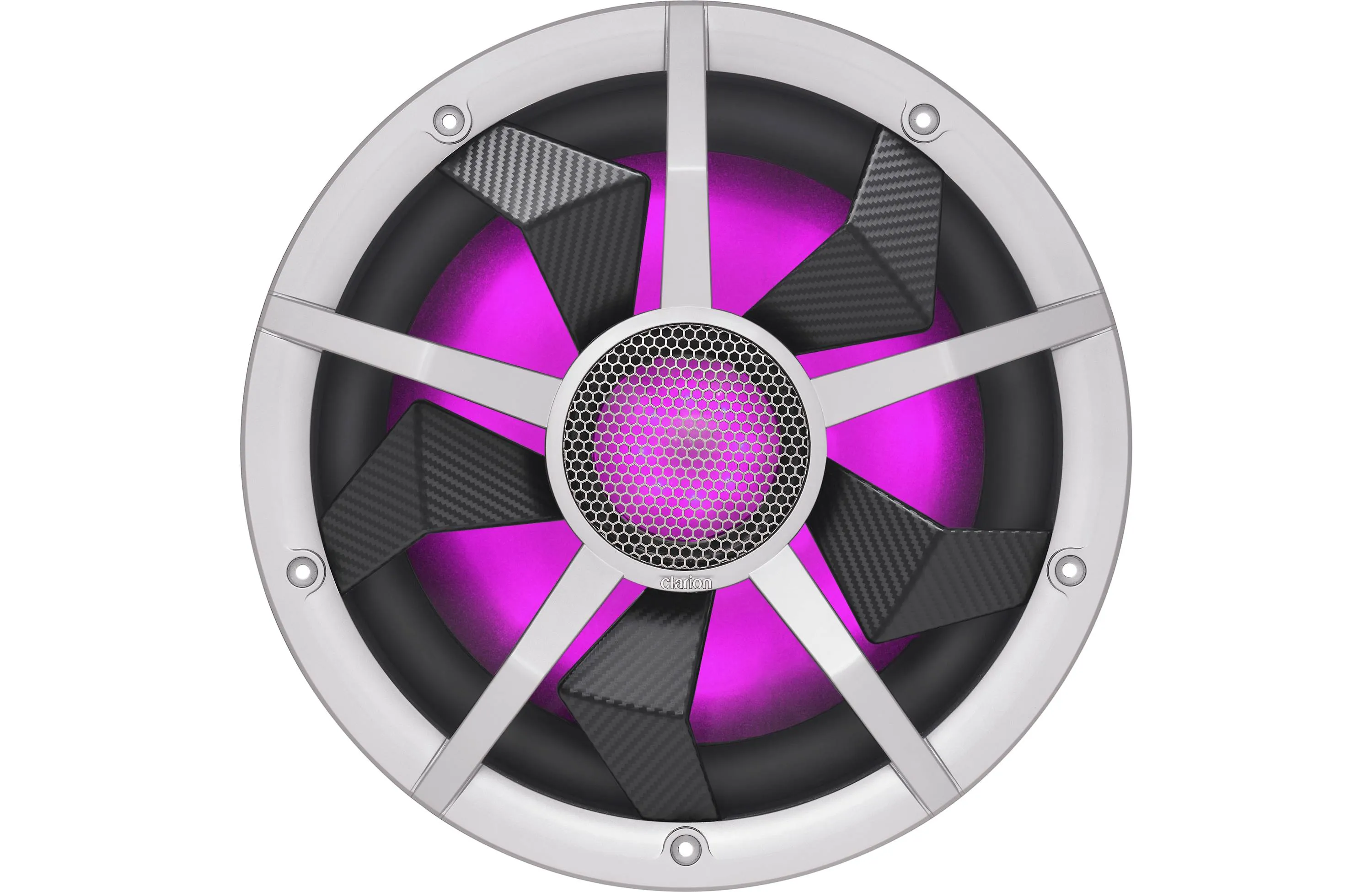

Multi-Color LED Lighting
To liven up your boats interior, RGB LED lighting has been added to all the CM-Series of speakers and subwoofers. Utilizing the built-in waterproof connectors, RGB LEDs featured on the CM-Series of speakers can be wired to provide a permanent color solution or integrated into an existing RGB LED controller for custom colors on the fly. Featuring red, green and blue tri-color LED, the CM-Series speakers can create over 16-million combinations of color when used with an RGB LED controller allowing for extreme color customization.
Maximum RMS Power: 300 Watts
Impedance: 2 Ohms Dual
Specifications
GENERAL SPECIFICATIONS | |
---|---|
Woofer Size | 12” (305 mm) |
Woofer Cone Material | Injection Molded Polypropylene (IMPP) |
Woofer Surround Material | Santoprene |
PERFORMANCE SPECIFICATIONS | |
Impedance | 2 ohms DVC |
SPL | 88 dB |
Frequency Response | 25 - 800 Hz |
Music Peak Power Handling | 1000 W |
Continuous Power Handling | 300 W |
MARINE APPLICATION STANDARD | |
ASTM B117 (Salt / Fog Exposure) | MEETS OR EXCEEDS |
ASTM D4329 (UV Exposure) | MEETS OR EXCEEDS |
Water Ingress Protection Rating | IP55 |
LED COLOR COMBINATIONS | |
RGB Wire(s) | Color Output |
Red | Red |
Green | Green |
Blue | Blue |
Red Green | Yellow |
Red Blue | Magenta |
Green Blue | Light Blue |
Red Green Blue | White |
Note: When paired with LED controller, speaker LEDs can achieve 16 million color variations
