Product Details
＋

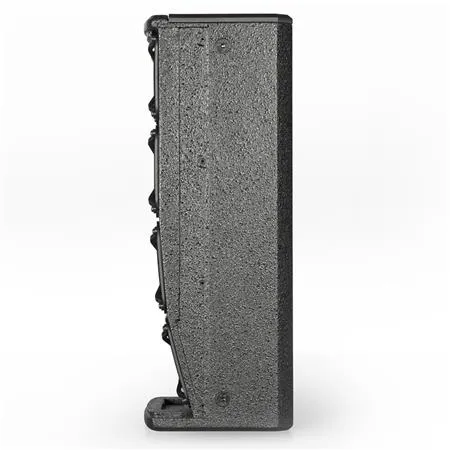

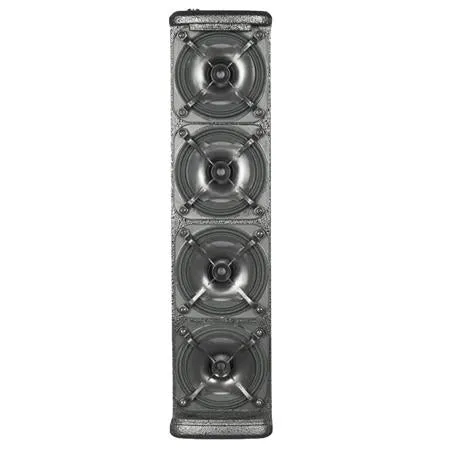

The ES 1203 TOP is the satellite of ES 1203 System. It's a passive speaker featuring 4x4" mid-woofers, whose alignment allows an asymmetrical vertical coverage (thanks to the Logarithmic Curved Column Array technology). The unique design of phase plugs widens the horizontal coverage and guarantees a perfect intelligibility.
Technical Data
Speaker Type
Passive Speaker
Acoustical data
Frequency Response [-6dB]
140 - 18000 Hz
Max Power
100 W Peak
MF - HF
4x4", v.c. 1"
Type MF - HF
Neodymium
Directivity
97x60°
Input
Audio Connector
4-Pole Speakon
Mechanics
Housing (Tops)
Plywood with full metal grille
Pole Mount
36 mm (M20 Thread)
Width (Top)
110 mm (4.33 in)
Height (Top)
460 mm (18.11in)
Depth (Top)
160 mm (6.30 in)
Weight (Top)
3.3 Kg – 7.27 lbs.
