Product Details
＋

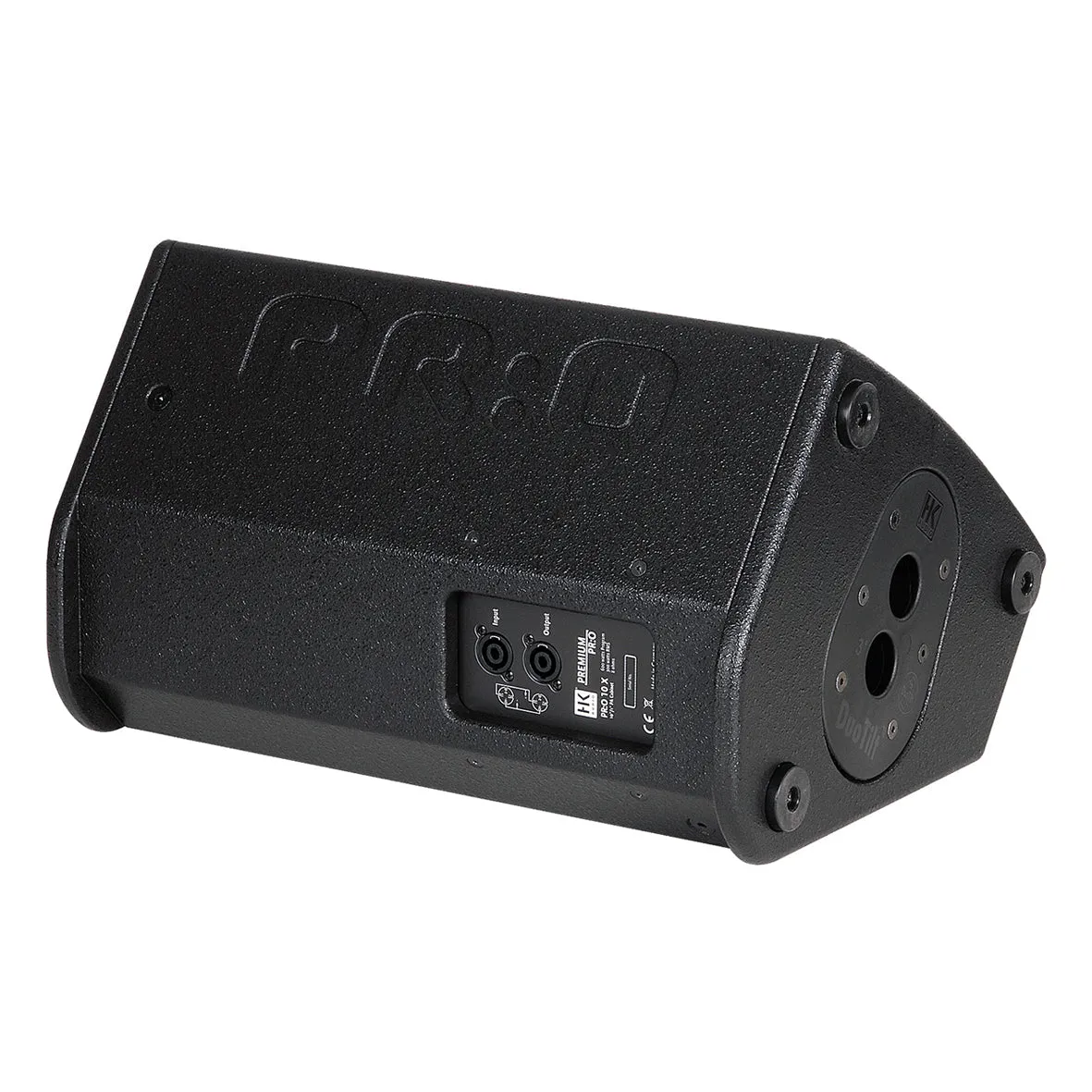

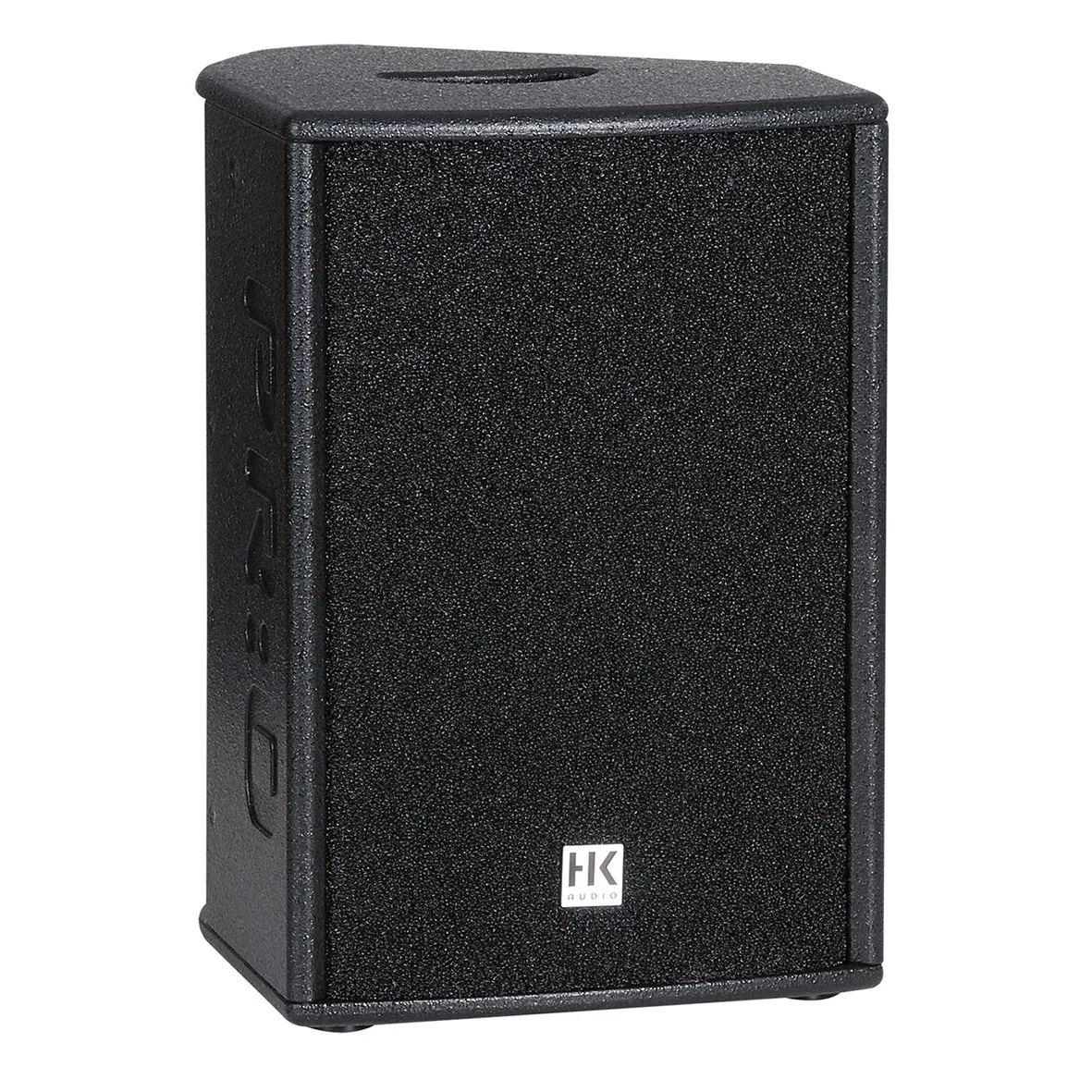

This remarkably versatile 10″/1″ enclosure can serve as a satellite, a fullrange cabinet, and a low-profile wedge monitor (30°). Its finely balanced and therefore feedback-resistant frequency response suits the given application.
Features
- Application: Fullrange Cabinet / Stage monitor / Satellit
- Power Capacity: 300/600 Watt
- SPL: 126 dB
- Frequency Range: 80 Hz – 19 kHz
- 90° x 60° CD horn
- DuoTilt 3°/ 7°
- 3 suspension points
- 2x Speakon Out
Specifications
| Power-handling nominal (RMS) | 300 W |
| Power-handling, program | 600 W |
| Power-handling, peak | 1200 W |
| Nominal impedance | 8 ohms |
| Max SPL | 126 dB half space (@10% THD) |
| Sensitivity 1W/1m | 99 dB half space |
| Frequency response /- 3 dB | 95 Hz - 19 kHz |
| Frequency response -10 dB | 80 Hz - 19 kHz |
| Low/Mid Speaker | 1x 10" |
| HF Driver | 1" |
| HF horn | 90° x 60° CD horn |
| HF protection (passive) | Dyn. protective circuit |
| Crossover frequency | 2.2 kHz, 12 dB/oct. |
| Connections | 2x Speakon NL4 |
| Angles up | 35° |
| Pole mount | DuoTilt 3/7 |
| Rigging points | 3x M8 |
| Handles | 1, integrated |
| Enclosure | MDF |
| Grille | Metal grille with black acoustic foam |
| Finish | Acrylic enamel, black |
| Optional accessories | Protective cover, Satellite Add-On M20, Adjustable pole M20 |
| Dimensions (WxHxD) | 32 x 48.5 x 30 cm |
| Weight | 12.5 kg / 27.55 lbs |
