Product Details
＋

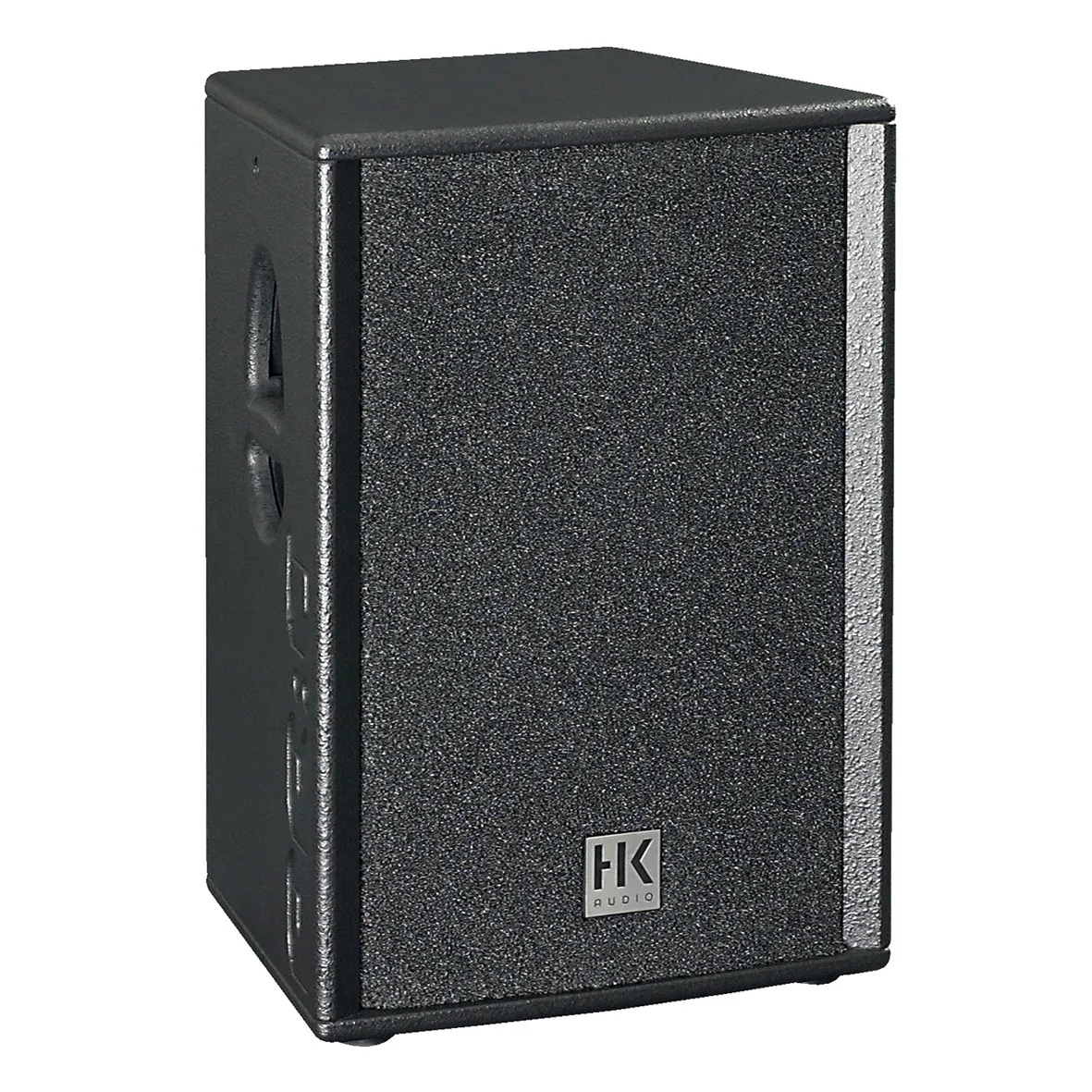

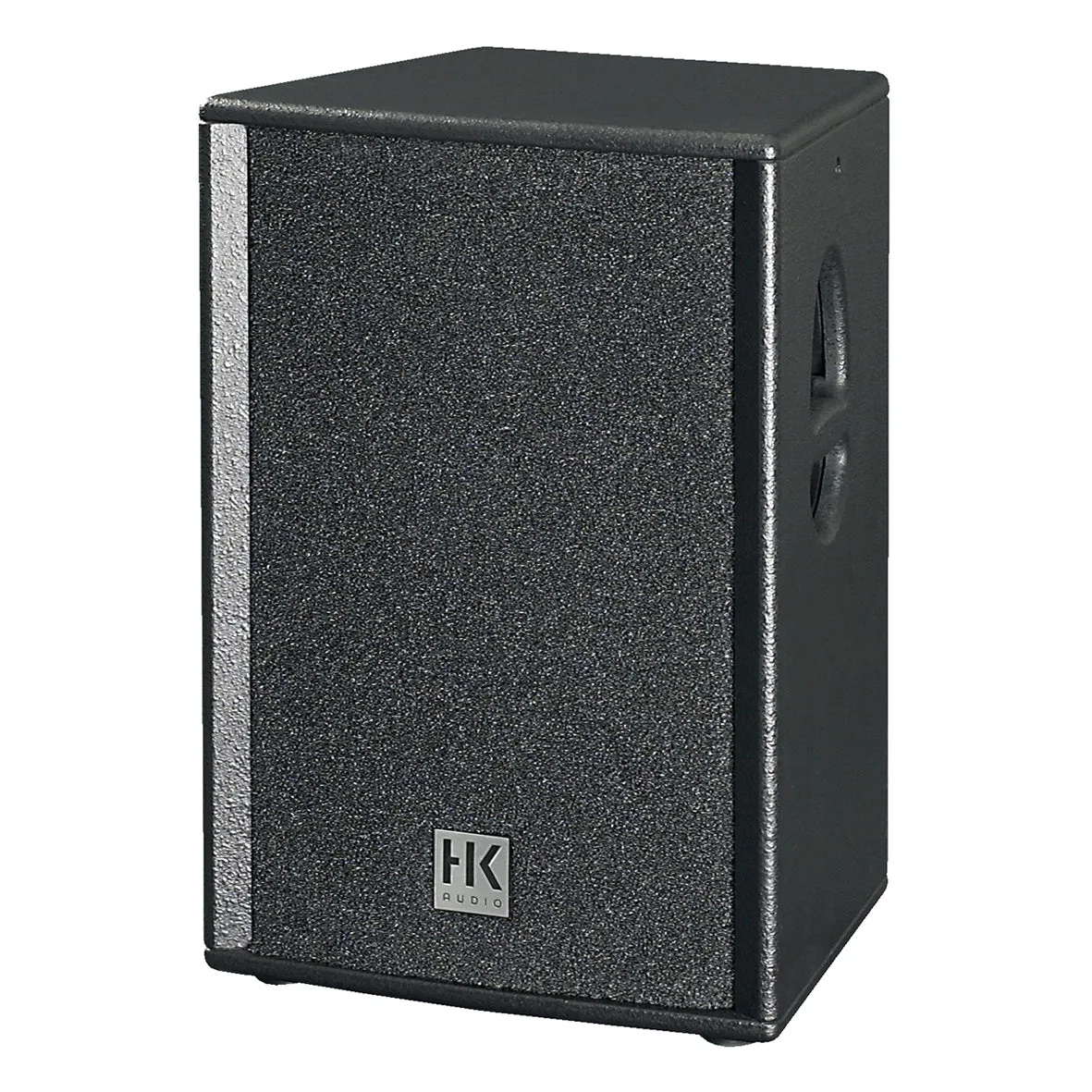

A fullrange enclosure in classic 12″/1″ format, this cab’s balanced sonic image, speech intelligibility, and high SPL are certainly impressive. It is the perfect satellite for the PR:O 18 S subwoofer.
Features
- Application: Fullrange Cabinet / Satellit
- Power Capacity: 400/800 Watt
- SPL: 128 dB
- Frequency Range: 68 Hz – 19 kHz
- 60° x 40° CD horn
- DuoTilt 3°/ 7°
- 3 suspension points
- 2x Speakon Out
Specifications
| Power-handling nominal (RMS) | 400 W |
| Power-handling, program | 800 W |
| Power-handling, peak | 1200 W |
| Nominal impedance | 8 ohms |
| Max SPL | 128 dB half space (@10% THD) |
| Sensitivity 1W/1m | 104 dB half space |
| Frequency response /- 3 dB | 68 Hz – 19 kHz |
| Frequency response -10 dB | 60 Hz – 19 kHz |
| Low/Mid Speaker | 1x 12" |
| HF Driver | 1" |
| HF horn | 60° x 40° CD horn |
| HF protection (passive) | Dyn. protective circuit |
| Crossover frequency | 2.2 kHz, 12 dB/oct. |

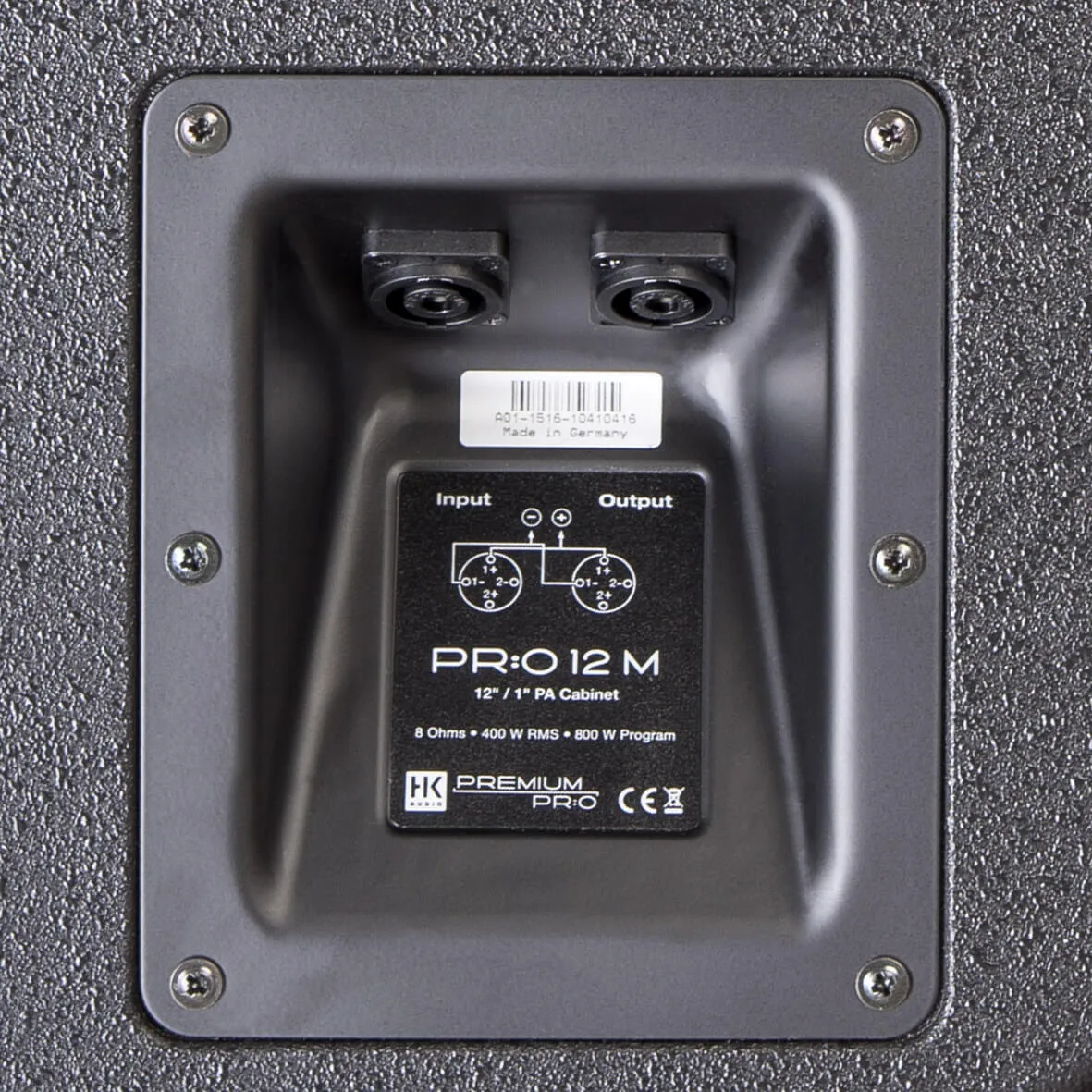

| Connections | 2x Speakon NL4 |
| Pole mount | DuoTilt 3/7 |
| Rigging points | 3x M8 |
| Handles | 2, integrated |
| Enclosure | MDF |
| Grille | Metal grille with black acoustic foam |
| Finish | Acrylic enamel, black |
| Optional accessories | Protective cover, Satellite Add-On M20, Adjustable pole M20 |
| Dimensions (WxHxD) | 40.5 x 59 x 37 cm |
| Weight | 18.2 kg / 40.1 lbs |
