Product Details
＋

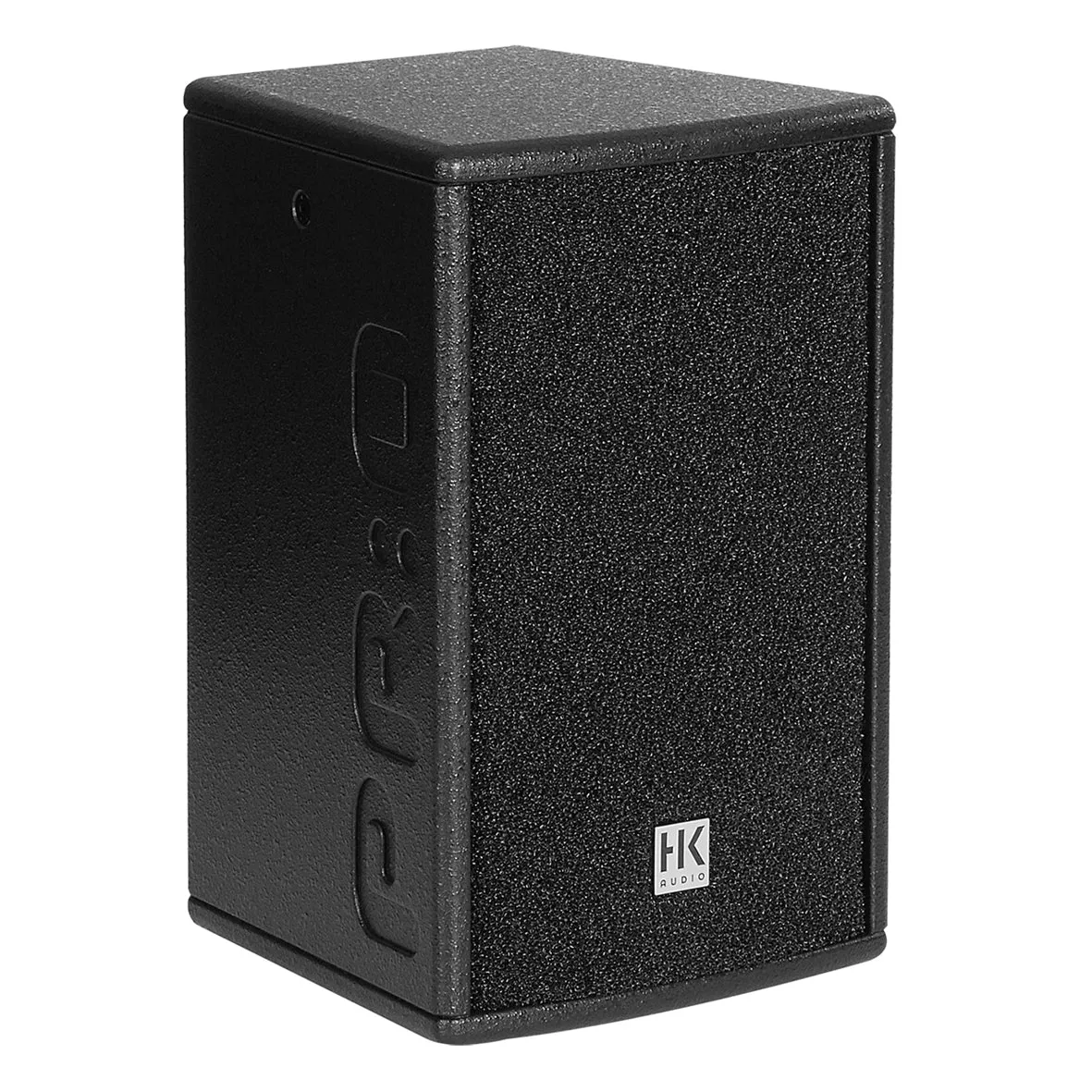

This 8″/1″ fullrange enclosure delivers awesome bass response and exceptionally high SPL for its size. Its manageable format make it an excellent choice for expedient permanent installation.
Features
- Application: Satellit / Fullrange Cabinet
- Power Capacity: 300/600 Watt
- SPL: 122 dB
- Frequency Range: 63 Hz – 19 kHz
- 80° x 80° CD horn
- Mono Tilt 3°
- 3 suspension points
- 2x Speakon Out
Specifications
| Power-handling nominal (RMS) | 300 W |
| Power-handling, program | 600 W |
| Power-handling, peak | 1200 W |
| Nominal impedance | 8 ohms |
| Max SPL | 122 dB half space (@10% THD) |
| Sensitivity 1W/1m | 91 dB half space |
| Frequency response /- 3 dB | 89 Hz – 19 kHz |
| Frequency response -10 dB | 63 Hz – 19 kHz |
| Low/Mid Speaker | 1x 8" |
| HF Driver | 1" |
| HF horn | 80° x 80° CD horn |
| HF protection (passive) | Dyn. protective circuit |
| Crossover frequency | 2.5 kHz, 12 dB/oct. |
| Connections | 2x Speakon NL4 |
| Pole mount | MonoTilt 3° |
| Rigging points | 3x M8 |
| Enclosure | MDF |
| Grille | Metal grille with black acoustic foam |
| Finish | Acrylic enamel, black |
| Optional accessories | Rain Gear, Satellite Add-On M20, Adjustable pole M20 |
| Dimensions (WxHxD) | 27 x 42 x 27 cm |
| Weight | 9.7 kg / 21.4 lbs |
