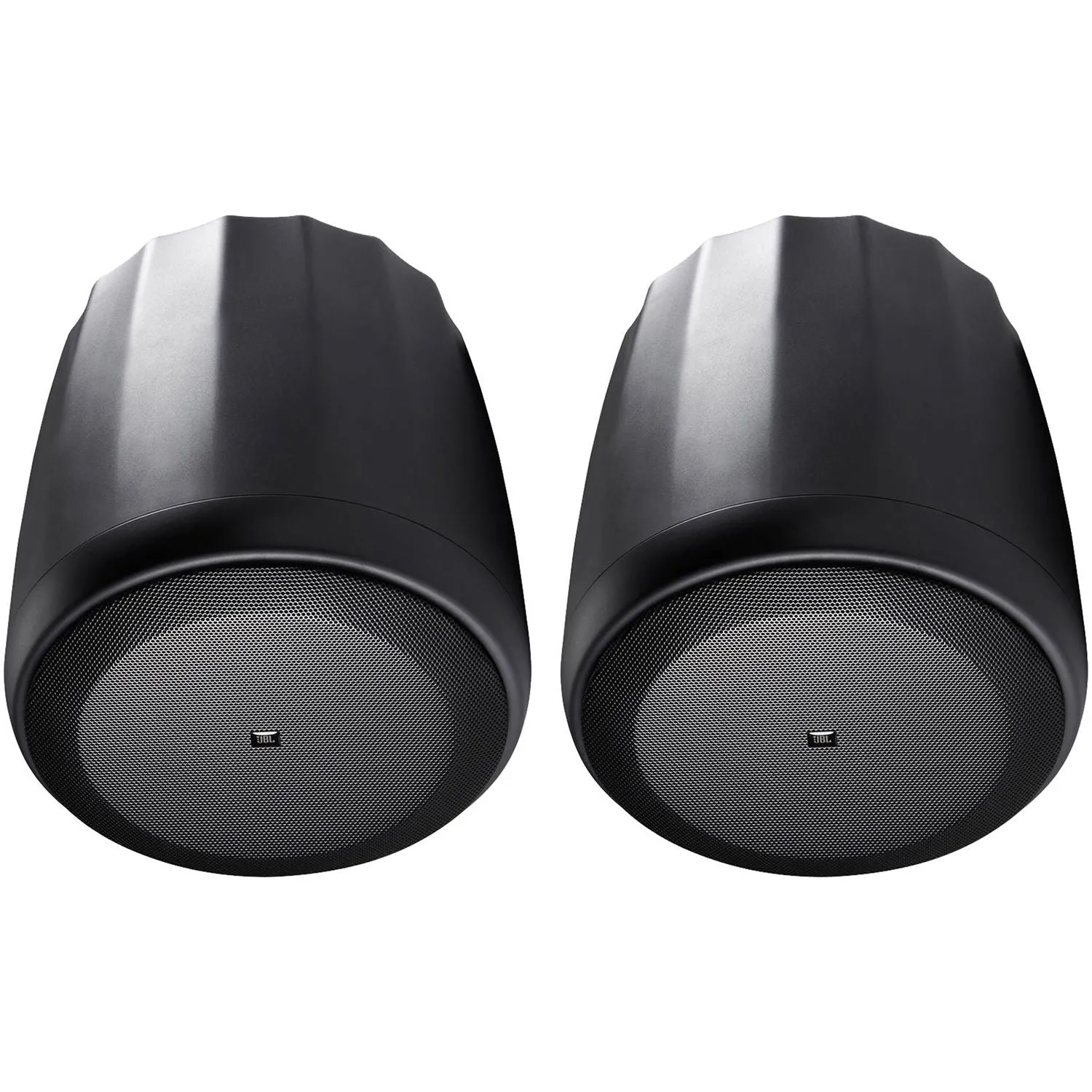

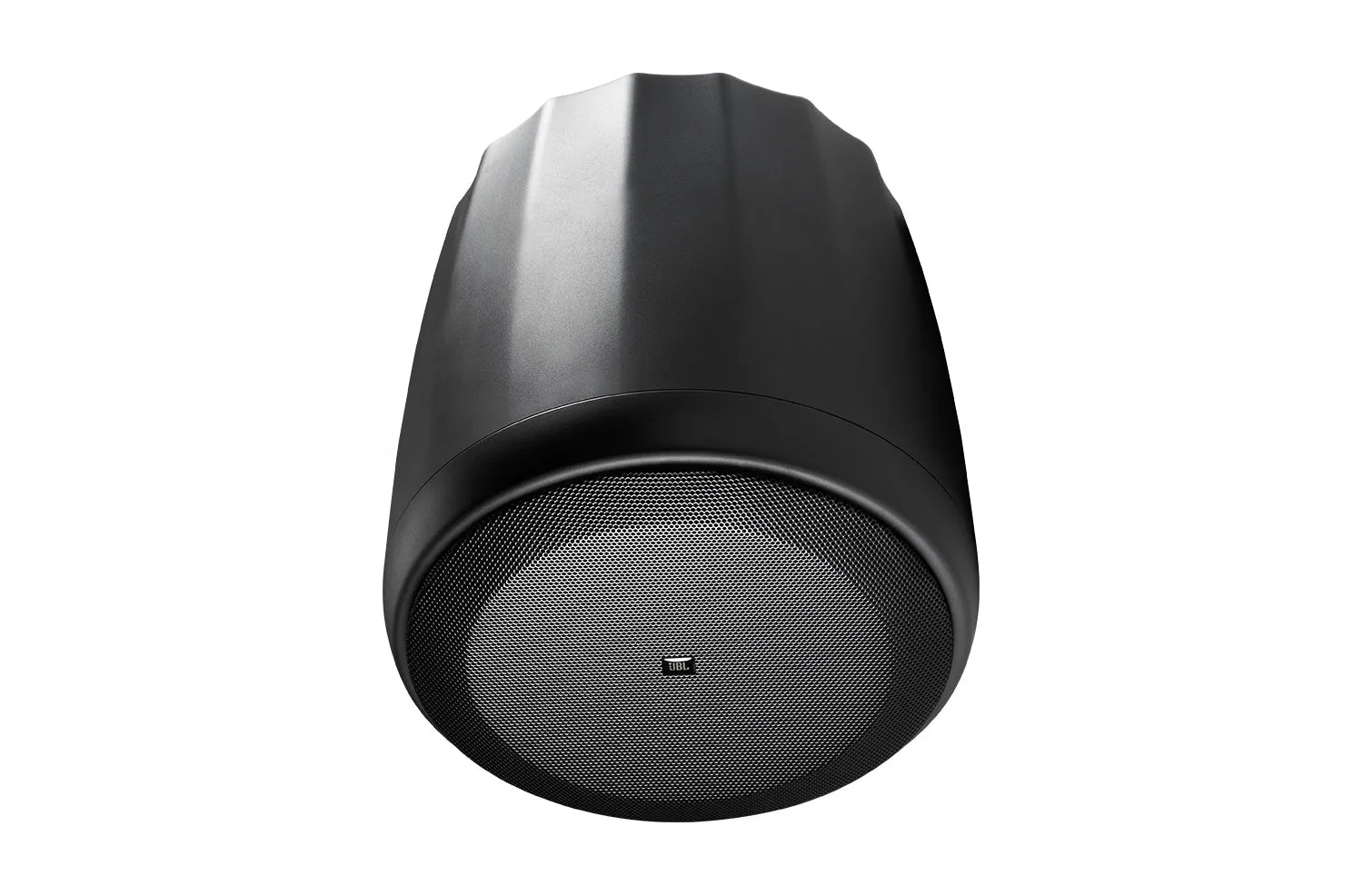

The black JBL Control 60PS/T is a pair of passive pendant subwoofers designed to deliver low-frequency reinforcement for foreground and background music reproduction in restaurants, retail stores, coffee shops, and fitness facilities. Capable of handling 300W of continuous long-term program power, the Control 60PS/T's 8" long-excursion driver can produce a frequency range of 42 to 350 Hz (-10 dB) and a 113 dB peak maximum SPL.
The integrated 110W multi-tap transformer enables 70V, 100V, or 8-ohm operation and the passive crossover provides high-pass-filtered outputs for two or four satellite speakers. Removable locking Euroblock connectors simplify the process of wiring the input, loop thru, and satellite outputs.
The high-impact polystyrene enclosure boasts an IP44 splash-proof rating in addition to its Mil-STD-810 compliance for resistance to humidity, salt spray, temperature & UV damage. The Control 60PS/T is supplied with suspension cable systems for safe hanging installation.
Features
- 8" Long-Excursion Driver
- 300W Long-Term Program Power Handling
- 42 to 350 Hz Frequency Range (-10 dB)
- Passive Crossover for 4 Satellites
- Integrated 110W Multi-Tap Transformer
- Supports 70V, 100V, or 8-Ohm Operation
- IP44 Splash-Proof Rating
- Removable Locking Euroblock Connectors
- Includes Hanging Hardware
Specifications
| Active/Passive |
Passive
|
| Number of Included Speakers |
2
|
| Speaker Configuration |
Subwoofer
|
| Power Handling |
For 100 Hours:
300 W Program
|
| Constant Voltage / Transformer Taps |
70 V:
110 / 55 / 30 / 15 W or 8 Ohms Bypass
100 V:
110 / 55 / 30 W or 8 Ohms Bypass
|
| Impedance |
8 Ohms
|
| Transformer Wattage |
110 W
|
| Enclosure Type |
Sealed
|
| Shielded |
No
|
Drivers
| LF Driver |
1x 8" / 20.32 cm Polypropylene-Coated Paper Woofer
|
| LF Voice Coil |
2" / 5.08 cm
|
Performance
| Frequency Range |
42 Hz to 350 Hz -10 dB
|
| Frequency Response |
55 Hz to 125 Hz ±3 dB
|
| Maximum SPL |
107 dB (Continuous)
113 dB (Peak)
|
| Sensitivity |
88 dB
|
| Crossover |
125 Hz (Passive)
|
| Transformer Insertion Loss |
0.98 dB at 15 W
0.99 dB at 30 W
0.94 dB at 55 W
1.1 dB at 110 W
|
Connectivity
| Inputs/Outputs |
1x Block 2-Pin Speaker Input (Locking, Removable)
1x Block 2-Pin Speaker Thru (Locking, Removable)
4x Block 2-Pin Speaker Output (Locking, Removable)
|
| Maximum Wire Gauge |
12 AWG / 2.5 mm
|
Environmental
| Certifications |
UL
|
| Environmental Protection |
Dust/Water-Resistant (IP44)
|
Physical
| Color |
Black
|
| Mounting |
2x Suspension
|
| Construction Material |
Metal Grille, Polystyrene
|
| Dimensions |
14.5 x 13.6 x 13.1" / 36.83 x 34.54 x 33.27 cm
|
| Weight |
16.7 lb / 7.6 kg (Each Speaker)
|
Packaging Info
| Package Weight |
38 lb
|
| Box Dimensions (LxWxH) |
26.5 x 16 x 14.5"
|
