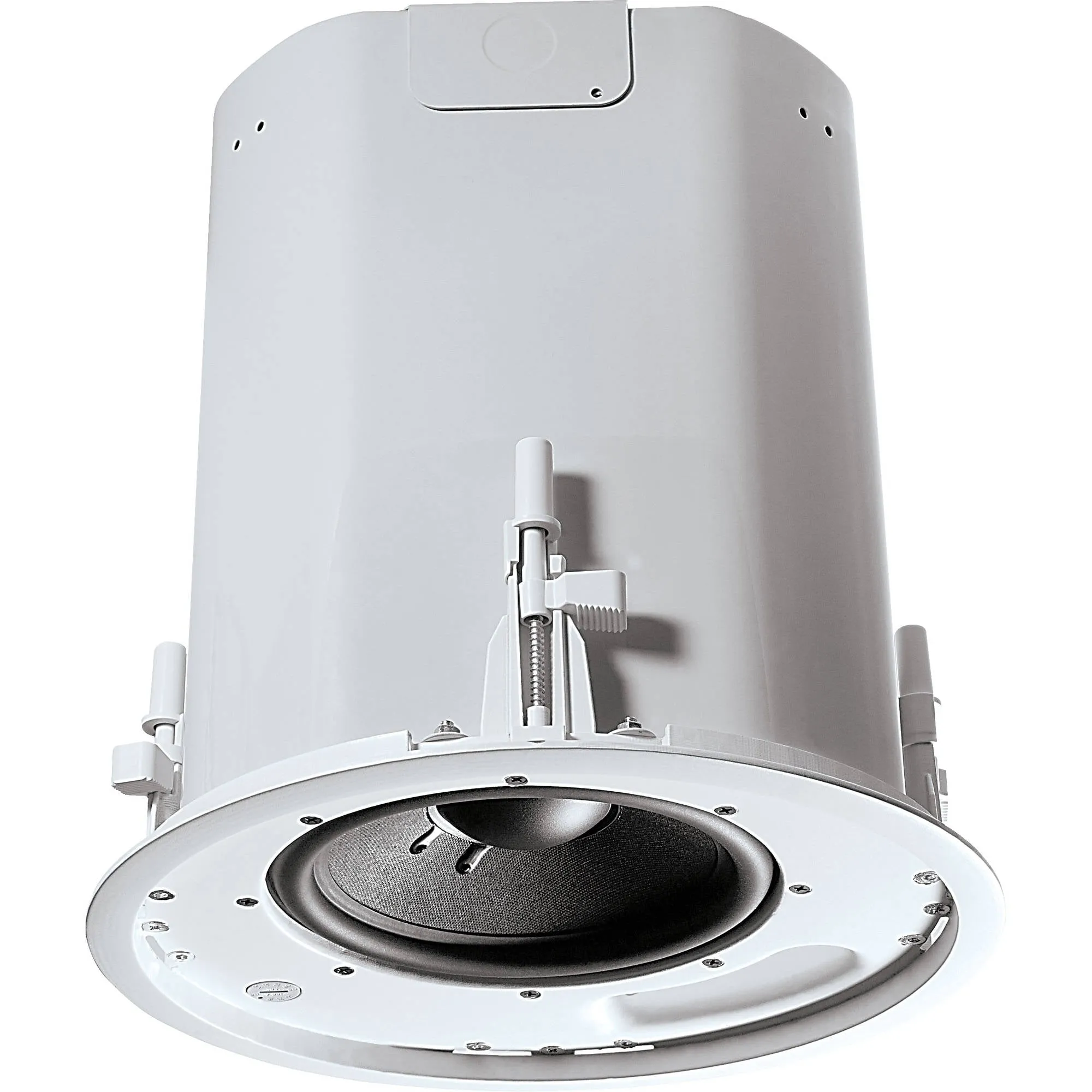

The passive JBL Professional Control 40CS/T is a high impact, direct radiating passive 8" subwoofer with a built-in passive crossover network. The Control 40CS/T can be used as part of a subwoofer-satellite system and when combined with the Control 42, the Control 40CS/T offers an extremely natural sounding and powerful subwoofer-satellite system that is well suited for applications requiring wide bandwidth and superior sonic performance with minimal visual impact.
The subwoofer requires a 200W amplifier to power the 8" woofer, which provides a frequency response of 50 to 180 Hz at a peak SPL of 115 dB. The system can also be used via an active crossover design with the rest of the Control Contractor in-ceiling line for superior bass response and can be operated off a 70V / 100V distributed line or in direct mode. The Control 40CS/T includes a variety of accessories for installation.
Features
- Extended Bass Response
- Passive Crossover Network
- Easily Installs
- 70/100V or Low-Z Input Switchable
Specifications
| Enclosure Type |
Bass-Reflex Subwoofer
|
| Total Power Capacity |
LF:
200 W Program
|
| System Impedance |
LF:
1x 7 Ohms (Passive)
|
Drivers
| LF Driver |
1x 8" / 203.2 mm Woofer
|
Performance
| Frequency Range |
30 Hz to 300 Hz -10 dB
|
| Frequency Response |
50 Hz to 180 Hz ±3 dB
|
| Maximum SPL |
115 dB SPL (LF, Peak)
|
| Speaker Sensitivity |
Passive:
95 dB
|
Connectivity
| Audio I/O |
6x Screw Terminal 2-Pole Input (Lockable)
|
Physical
| Dimensions |
13.6 x 13.6" / 345.4 x 345.4 mm (Without Mounting Hardware)
|
| Weight |
17.9 lb / 8.1 kg
|
Packaging Info
| Package Weight |
52.32 lb
|
| Box Dimensions (LxWxH) |
32.5 x 18.5 x 16.5"
|
